Tray Filling Machine - for Middle Size Plastic Tray

The Middle size tray filling machine is used to filling ampoule into middle size plastic tray, such as 100 pcs package, it is targeting on save package cost of ampoule drugs, also this type of package is commonly used on international market, beside saving package raw materials cost, it saves a lot of labor work to filling the ampoule bottle into package manually.

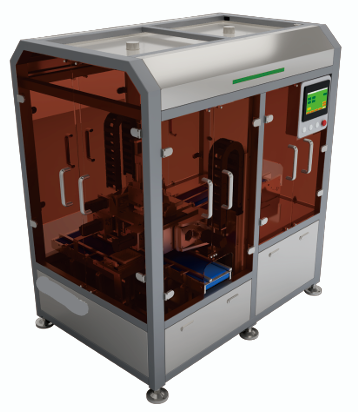

Tray Filling Machine Image

Voltage : AC 220 V

Power : 3.7 kW

Speed: 8 tray/min, 110 pcs/tray

Dimension : 1,630 mm x 1,100 mm x 1,835 mm

Weight : 800 kg

Tray Lidding Machine

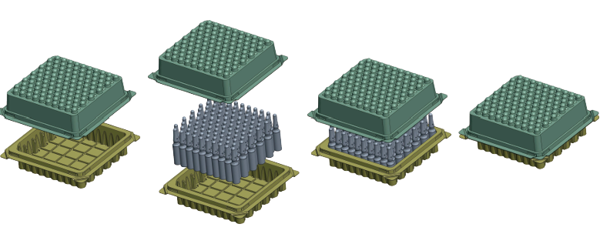

The middle size plastic tray is combined top and bottom two part, the tray separator separates the tray top to the lidding machine, the tray lidding machine can accurately grab the tray top and lid the plastic top onto the tray bottom which filled ampoules, completing the lidding action without labor work.

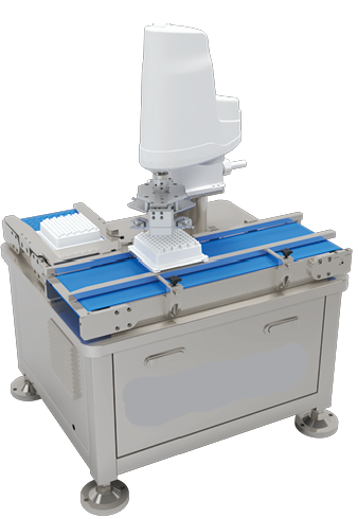

Tray Lidding Machine Image

Voltage : AC 220 V

Power : 0.65 kW

Speed: 8 tray/min

Dimension : 1,121 mm x 700 mm x 600 mm

Weight : 160 kg
