The ampoule cleaning-drying machine developed a new type of integrated washing and drying equipment, based on the needs and suggestions of many customers.

Its working principle is to wash in high-temperature water and flush with high-pressure water, and set up a pure water flushing device at the outlet to effectively clean the bottle surface in all directions.

It is suitable for cleaning ampoules of various sizes. It is equipped with functions such as automatic water temperature adjustment, automatic water level adjustment, automatic water circulation and impurity filtering.

The equipment uses PLC software programming and intelligent touch screen operation, making it easy to operate.

The equipment has high cleaning efficiency, fast speed and high cleaning cleanliness without manual intervention, which greatly saves labor costs.

The air dryer uses high-power air knives and high-speed rotating nozzles to dry 360 degrees without dead ends, quickly drying water droplets and vapor on the ampoules.

Technical Parameter

Dimension : 6,327 mm x 1,800 mm x 1,765 mm

Power : 28.8 kW

Speed : 6 trays/min

Voltage : AC 380 V / 50 Hz

Air consumption : 1.2 m3/min/tray

Working temperature : 0℃ ~ 60℃

Weight : 2,500kg

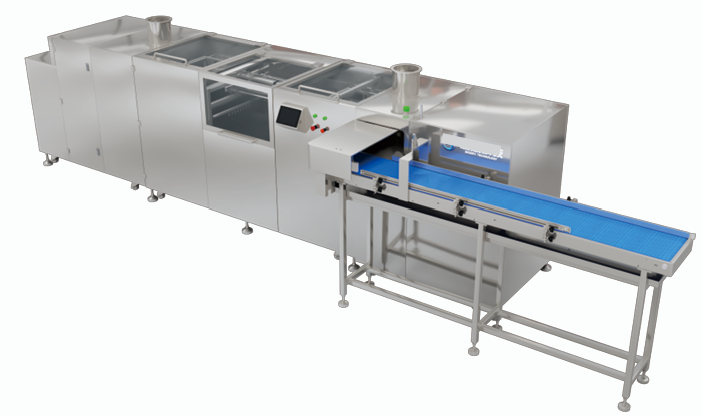

Cleaning Machine Image
