Equipment Connection Conveyor

The intelligent conveyor is mainly used for ampoule packaging equipment connection, like connect light inspection machine with ampoule printing machine/ ampoule labeling machine.

The equipment can automatically detect the bottle output speed and flow rate of the light inspection machine, and automatically adjust the storage level according to the ampoule flow rate to achieve the effect of intelligent buffering; according to the storage capacity, it can automatically control the ampoule transfer speed.

At the same time, the ampoule storage information can be promptly fed back to the printer or labeling machine for speed adjustment.

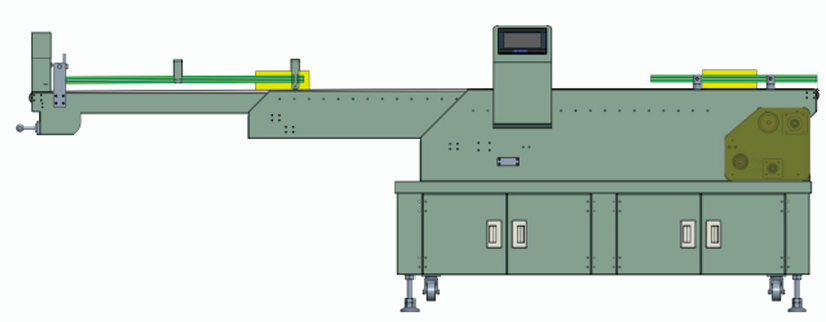

Equipment connection Conveyor Image

Power : 2 kW

Voltage : AC 220 V

Dimension : 4,580 mm x 1,165 mm x 1,020 mm (Customizable)

Aisle Conveyor

Aisle machines are intelligent telescopic conveying equipment used in pharmaceutical packaging workshops to facilitate the shuttle of workers through the aisles.

Under normal production conditions on site, workers can freely pass or  transport materials through the telescopic conveying platform of the aisle machine, which not only facilitates the flow of operators, but also does not affect the material transmission on the conveyor belt.

The equipment has the function of detecting obstacles to ensure the safety of passing personnel or goods. When no obstacles are detected, the channel is automatically closed to ensure smooth material transportation.

The most important thing is that the aisle machine facilitates the evacuation of personnel and ensures the safety of personnel in an emergency.

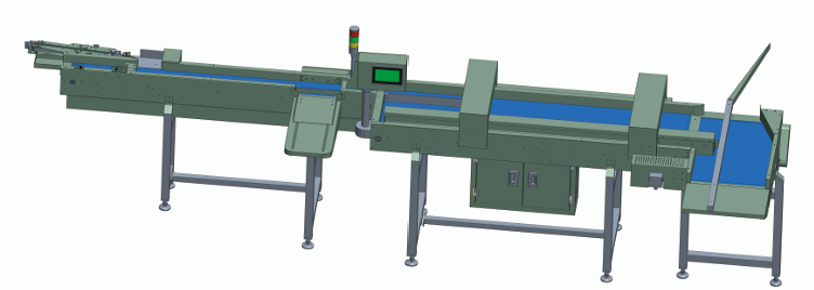

Aisle Conveyor Image

Power : 1.3 kW (Customizable)

Voltage : AC 220 V/ 50 Hz

Dimension : 2,030 mm x 660 mm x 930 mm (Customizable)

Weight : 240 kg
