Tray DISCHARGING Machine - Stainless steel tray

The tray discharging machine is used to discharge the sterilized whole tray of injection out of the stainless steel tray, and the actions of tray pushing, opening, bottle pushing, and bottle discharging are completed by 3 mechanical arms.

The injections are discharged and conveyed to back-end equipment in an orderly manner, replacing manual transfer and bottle feeding, which can effectively improve the turn over rate and reduce the use of trays.

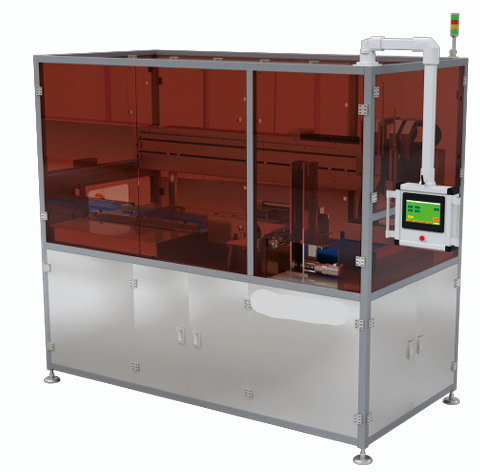

DISCHARGING Machine Image

Power : 3.7 kW

Voltage : AC 220 V / 50 Hz

Dimension : 1,940 mm x 1,100 mm x 2,175 mm

Speed : 2 trays/min

Weight : 600 kg

Tray CHARGING Machine – Stainless steel tray

The tray charging machine is used for the automated equipment connection of tray charging of water injection ampoules and vials to stainless steel trays, realizing the cycle of trays from empty trays to full trays.

The equipment realizes accurate tray charging and intelligent linkage of ampoule through unique mechanical structure and control system, and moves towards unmanned production.

The fully automatic tray charging machine accurately charge the ampoule into the stainless steel tray, conveys them to next process in the packaging line, the empty trays are transported and recycled across regions through elevators and landing machines, saving time and effort without affecting logistics.

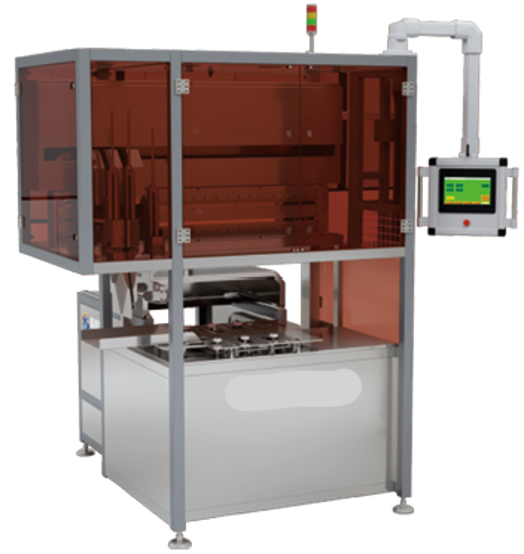

CHARGING Machine Image

Power : 2.8 kW

Voltage : AC 220 V / 50 Hz

Dimension : 1,610 mm x 1,000 mm x 2,300 mm

Speed : 2 trays/min

Weight : 800 kg
