The tray separator is mainly suitable for the packaging of water injections in the pharmaceutical industry.

It is the front process of separating packaging of plastic trays. The separated plastic trays will be conveyed to back packaging process through a conveyor belt, realizing a fully automatic packaging process.

In this process, it can replace the work efficiency of manual workers, reducing labor costs and improving production efficiency.

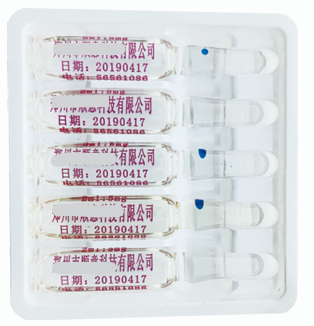

Tray Sample

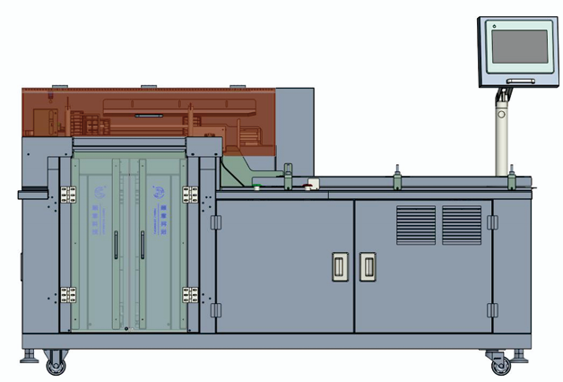

B1-2 Tray Separator Machine Image

Application : 1-20 ml plastic trays

Speed : 40-150 trays/min

Power : 1.3 kW

Dimension : 2.015 x 0.65 x (0.72-0.82) m

Weight : 260 kg

Compressed air : ≥ 0.4 MPa

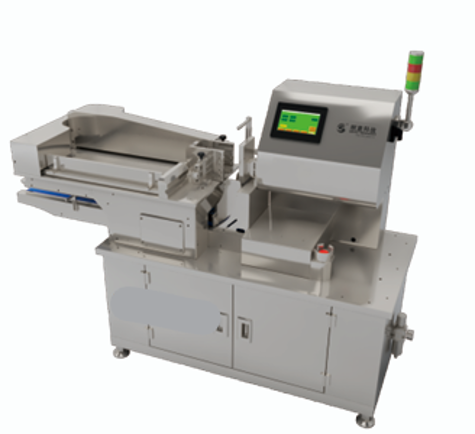

B3 Tray Separator Machine Image

Application : 1-20ml plastic trays

Speed : 60-130 trays/min

Power : 1.3 kW

Dimension : 2.024 x 0.65 x (0.73-0.83) m

Weight : 280 kg

Compressed air : ≥ 0.4 MPa

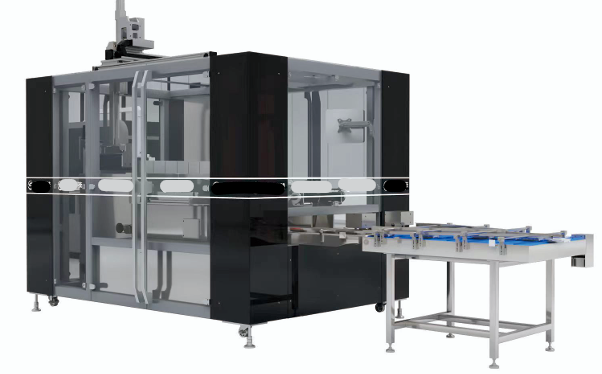

High speed PVC tray Separator Machine Image

Application : 1-20ml plastic (PVC) trays

Production capacity : 120-240 trays/min

Power : 4.5-5 kW

Voltage : AC 220 V / 50 Hz

Dimension : 3.1 x 1.8 x 1.9 m

Weight : 1,500 kg

Compressed air : ≥ 0.6 MPa
