The equipment uses liquid ink, which is composed of 4 kinds of color ink (multi-color printing) or single-color ink(single color printing), which is adjusted through the computer color palette to become the required color.

Ultraviolet light printing technology and printing positioning adopt double prevention and control technology to automatically detect ampoules to print.

Computer-set typeface typesetting printing content can be edited easily, modified and saved at any time. It has the function of shortage compensation, the printing effect has concave and convex feeling, printing is clear and dries immediately. It is designed in sectors, including tray separating sector, printing sector, feeding convey or sector, easy to assemble and convenient to update separately.

It can be connected to the light inspection machine and leak inspection machine, and the back end can be directly connected to the carton packaging machine to complete the entire line connection automation and humane operation, save labor and improve production efficiency.

Technical Parameter

Power : 6 kW

Voltage : AC 220 V / 50 Hz

Printing speed : 1-2ml 48,000-54,000 pcs/h, 5-10ml 28,000-36,000 pcs/h, 20ml 20,000-25,000 pcs/h

Dimension : 5,078 mm x 1,900 mm x 1,350 mm

Weight : 1,500 kg

Compressed air : 0.4-0.8 MPa

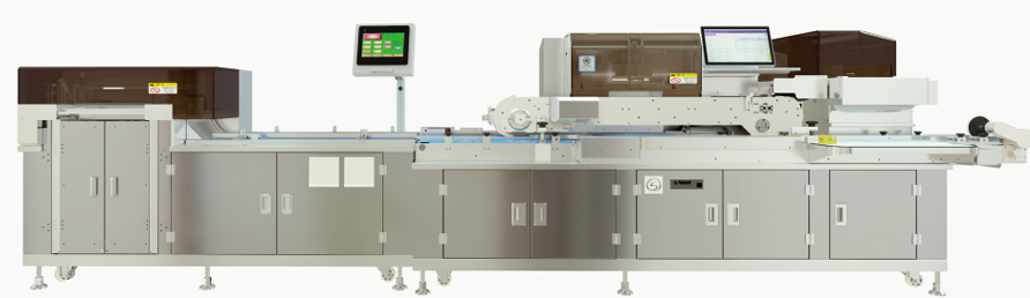

Printer Image

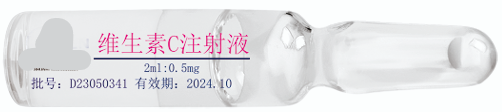

Printing Sample
