■ Applications in optical communications and measuring instruments

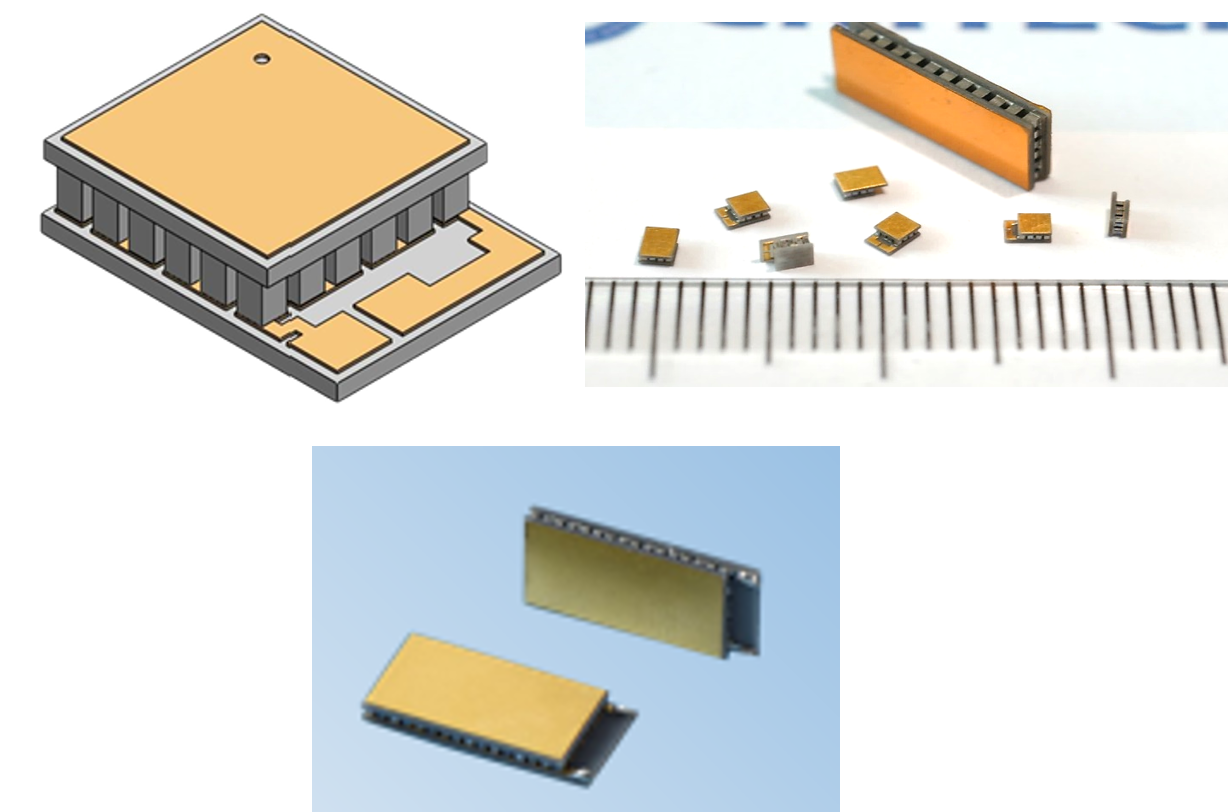

Ultra-compact module
| No. | Model | Imax(A) | Vmax(V) | Δtmax(℃) | Qcmax(W) | Size(mm) | ||
| L | W | H | ||||||
| 1 | TEC1226 | 0.6 | 1.9 | 81 | 0.7 | 2.6 | 1.2 | 0.8 |
| 2 | TEC2027 | 0.7 | 2.4 | 78 | 1.0 | 2.7 | 2.0 | 0.8 |
| 3 | TEM1-08-1 | 1.0 | 0.97 | 73 | 0.56 | 1.6 | 1.6 | 0.9 |
| 4 | TEM1-030-1 | 1.0 | 3.63 | 73 | 2.1 | 6.0 | 3.0 | 1.0 |
| 5 | TEC2093 | 1.3 | 4.5 | 74 | 3.6 | 9.3 | 2.0 | 0.9 |
| 6 | TEC4784 | 1.5 | 4.0 | 78 | 3.8 | 8.4 | 4.7 | 1.6 |
| 7 | TEM1-033-2.25 | 2.25 | 4.0 | 73 | 5.2 | 11.0 | 4.0 | 2.0 |
| 8 | TEM1-035-2.5 | 2.5 | 4.5 | 74 | 5.0 | 12.2 | 6.05 | 1.65 |
| 9 | TEC6082 | 3.0 | 3.2 | 80 | 5.2 | 8.2 | 6.0 | 1.65 |
| 10 | TEM1-045-04 | 4.0 | 5.4 | 74 | 12.4 | 16.5 | 6.0 | 1.63 |
It is used for temperature control of laser diodes in the field of optical communications. We also accept consultations for customization according to customer requirements.
■ Applications in medical devices

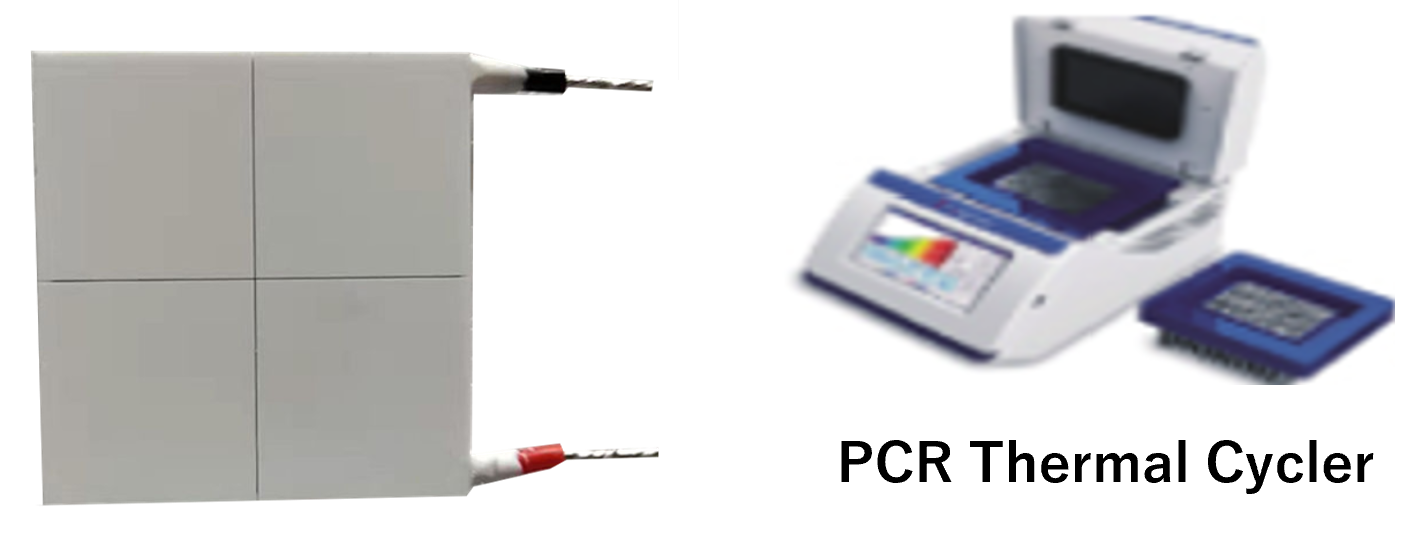

Module for medical PCR testing devices (for reference)
| No. | Model | Imax(A) | Vmax(V) | Δtmax(℃) | Qcmax(W) | Size | ||
| L | W | H | ||||||
| 1 | TER1-280-06 | 6 | 36.7 | 77 | 124.3 | 76 | 35 | 4.1 |
| 2 | TER1-127-08 | 8 | 16.0 | 77 | 75.0 | 40 | 40 | 3.8 |
| 3 | TER1-071-15 | 15 | 9.3 | 77 | 77.8 | 40 | 40 | 4.7 |
| 4 | TER1-032-16 | 16 | 4.2 | 77 | 37.8 | 28.4 | 25.4 | 3.6 |
| 5 | TER1-072-17 | 17 | 9.3 | 77 | 89.4 | 34 | 30 | 2.3 |
In the medical field, it is adopted in PCR thermal cycler equipment because of its excellent response and accuracy in temperature cycling, which is particularly required for PCR testing devices. We also accept consultations for customization according to customer requirements.
■ Multi-layer modules

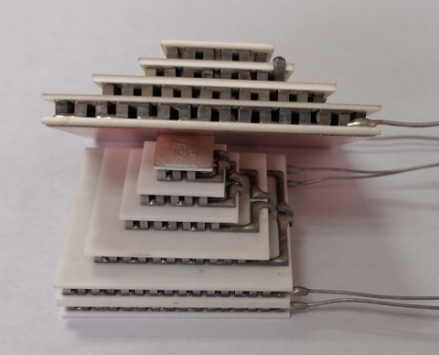

Multi-layer modules
| No. | Model | Imax(A) | Vmax(V) | Δtmax(℃) | Qcmax(W) | Size | ||
| L | W | H | ||||||
| 1 | TEN2-102-04 | 4 | 13..4 | 90 | 9 | 30 | 30 | 6.9 |
| 2 | TEN2-199-05 | 5 | 26.0 | 90 | 23 | 30 | 30 | 7.1 |
| 3 | TEN2-224-06 | 6 | 22.7 | 90 | 10 | 45 | 10 | 6.9 |
| 4 | TEN2-312-06 | 6 | 40.9 | 90 | 28 | 55 | 55 | 6.5 |
| 5 | TEN4-249-06 | 6 | 32.8 | 110 | 5 | 40 | 40 | 12.6 |
By achieving a large temperature gradient through a multi-layer structure, it is used in infrared sensors, CCDs, and similar devices. We also accept consultations for customization according to customer requirements.
■ General-purpose modules
General-purpose modules
| No. | Model | Imax(A) | Vmax(V) | Δtmax(℃) | Qcmax(W) | Size | ||
| L | W | H | ||||||
| 1 | TES1-071-02 | 2 | 9.3 | 77 | 10.5 | 23 | 23 | 4.15 |
| 2 | TES1-127-03 | 3 | 15.4 | 77 | 28.2 | 30 | 30 | 3.35 |
| 3 | TES1-127-04 | 4 | 16.6 | 77 | 37.6 | 40 | 40 | 4.3 |
| 4 | TES1-127-06 | 6 | 16.6 | 77 | 53.4 | 40 | 40 | 3.8 |
| 5 | TES1-128-08 | 8 | 16.6 | 77 | 75.2 | 44 | 40 | 3.5 |
Designed with a low-cost approach for the consumer market, it is used in beauty and health devices, home appliances, and similar products. We also accept consultations for customization according to customer requirements.
