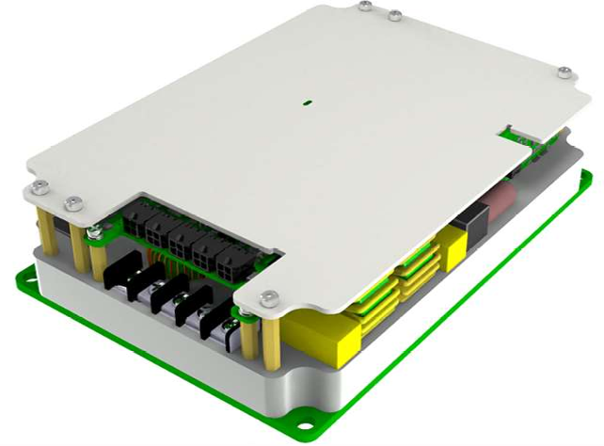

■ Battery Charging Module

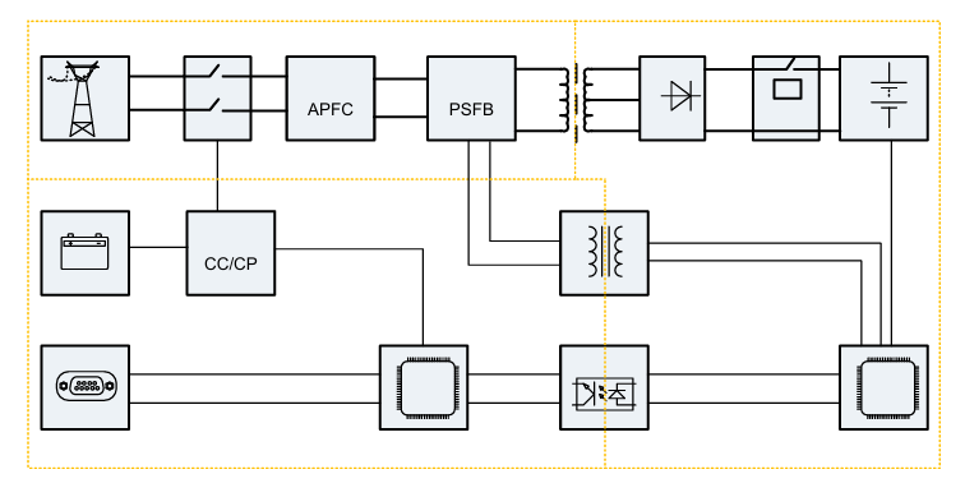

Block Diagram
Product Selection Table
| Specification | Model | TR1007 | TR1006 | TR1005 | TR1004 | TR1003 | TR1002 |
| Rated output power (W) | 3300 | ||||||
| Rated output voltage (V) | 24 | 48 | 72 | 108 | 144 | 360 | |
| Working mode | Response mode | ||||||
| Communication mode | CAN | ||||||
| Input | Input voltage range | 90Vac~265Vac | |||||
| Input frequency range | 46~65Hz | ||||||
| Start-up impact current | ≤16A | ||||||
| Input power factor | ≥0.99 (@220Vin, Pomax) | ||||||
| Output | Output voltage range (V) | 0-36 | 0-70 | 0-95 | 0-136 | 0-180 | 0-440 |
| Output current range (A) | 0-100 | 0-60 | 0-45 | 0-30 | 0-22 | 0-9 | |
| Voltage and current regulation accuracy | ≤1% & ≤5% | ||||||
| Output response time | ≤5s | ||||||
| Typical working efficiency | ≥94% | ||||||
| Others | Working noise | ≤60 dB | |||||
| Fault protection | Dual redundancy of software and hardware | ||||||
| Working environment temperature | -20℃~65℃ | ||||||
| Working environment humidity | 5%-95% | ||||||
| Body size (mm) | 140*200*52 | ||||||
| Body weight (kg) | 2.5±0.2 | ||||||

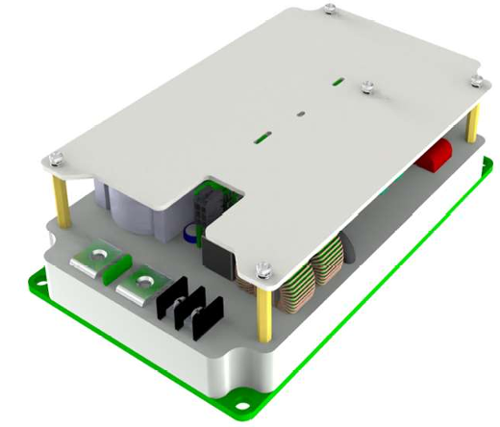

■ DC-DC Converter Module
Block Diagram
Product Selection Table
| Specification | Model | TR2000 | TR2001 | TR2002 | TR2006 | TR2007 |
| Rated output power (W) | 1500 | 1800 | ||||
| Peak output power (W) | 1800W@6min | 2000W@6min | ||||
| Rated output voltage (V) | 14 | 28 | ||||
| Enable mode | CAN enable/hardline enable/no enable | |||||
| Input | Rated input voltage (V) | 144 | 360 | 540 | 360 | 540 |
| Input voltage range (V) | 80-200 | 200-450 | 400-700 | 200-450 | 400-700 | |
| Maximum input current (A) | 16 | 8 | 5 | 8 | 5 | |
| Input pre-charge | Built-in pre-charge | |||||
| Output | Output voltage range (V) | 9-16 | 20-32 | |||
| Output current range (A) | 0-107 | 0-64 | ||||
| Output voltage regulation accuracy | ±140 mV | ±280 mV | ||||
| Output response time | ≤2s | |||||
| Typical working efficiency | ≥92% | ≥93% | ||||
| Others | Working noise | ≤60 dB | ||||
| Fault protection | Dual redundancy of software and hardware | |||||
| Working environment temperature | -20℃~65℃ | |||||
| Working environment humidity | 5%-95% | |||||
| Body size (mm) | 120*200*52 | |||||
| Body weight (kg) | 1.8±0.2 | |||||

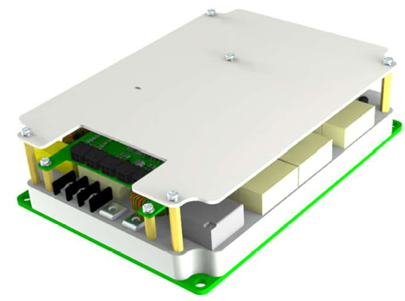

■ Inverter Module

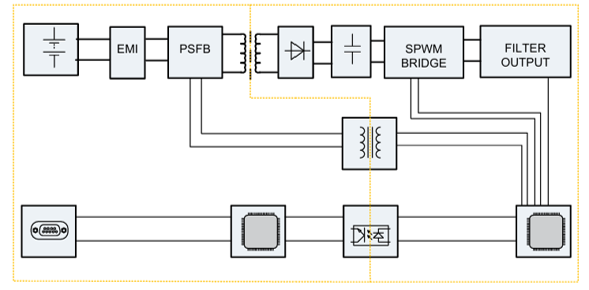

Block Diagram
Product Selection Table
| Specification | Model | TR4010 | TR4013 | TR4014 | TR4016 | |
| Rated output power (W) | 3000 | |||||
| AC output phase number | Single-phase three-wire (L. N. PE.) | |||||
| Working mode | Response mode / Automatic mode | |||||
| Communication mode | CAN | |||||
| Input | Rated input voltage (V) | 48 | 144 | 360 | 540 | |
| Input voltage range (V) | 30-80 | 100-200 | 200-450 | 400-700 | ||
| Rated input current (A) | 60 | 22 | 9 | 6 | ||
| Input pre-charge | Built-in pre-charge | |||||
| Output | Rated output voltage (V) | 220Vac | ||||
| Rated output current (A) | 13 | |||||
| Rated output frequency (Hz) | ≤1% & ≤5% | |||||
| Output response time | ≤2s | |||||
| Typical working efficiency | ≥92% | |||||
| Others | Working noise | ≤60 dB | ||||
| Fault protection | Dual redundancy of software and hardware | |||||
| Working environment temperature | -20℃~65℃ | |||||
| Working environment humidity | 5%-95% | |||||
| Body size (mm) | 140*200*52 | |||||
| Body weight (kg) | 2.5±0.2 | |||||
