Product family
■ FlexBESS C2-M215

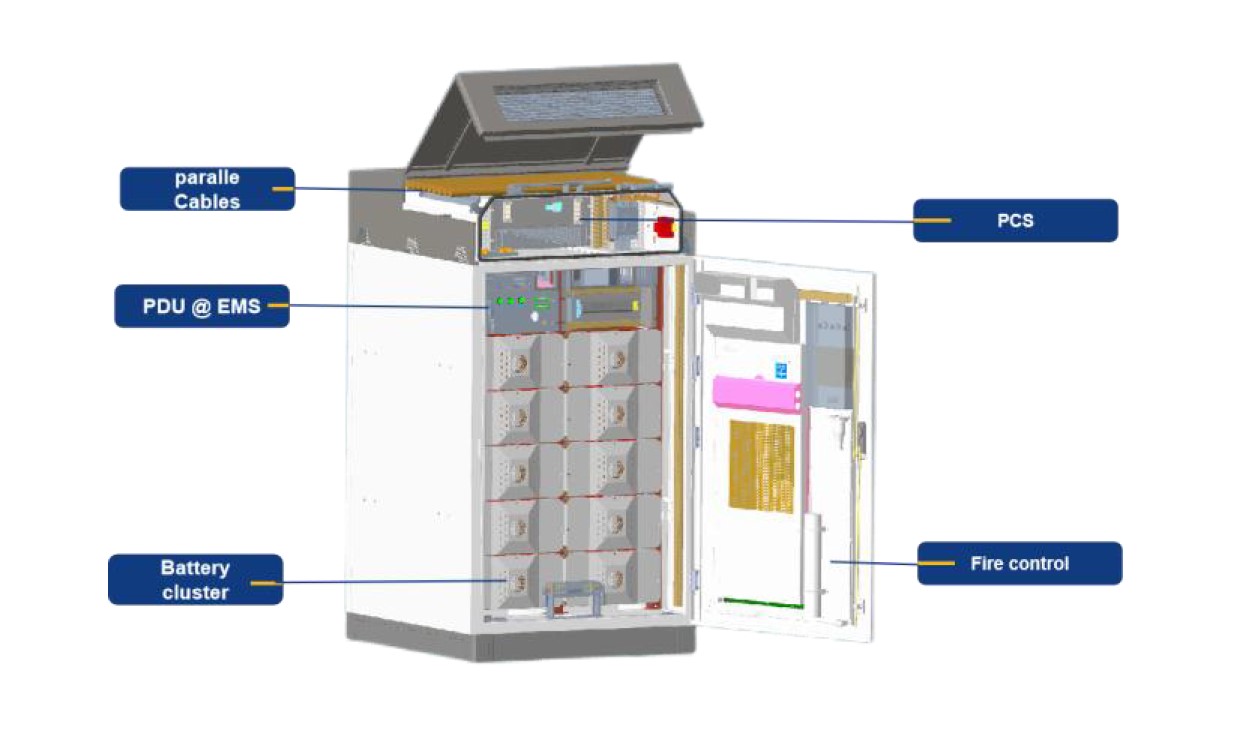

The FlexBESS C2-M215 is the main bay of the FlexBESS C2 series, it can work alone as a BESS system, with a typical configuration: 100kW power PCS and 215kWh battery. With the main EMS inside, it can manage the slave bays when parallel.

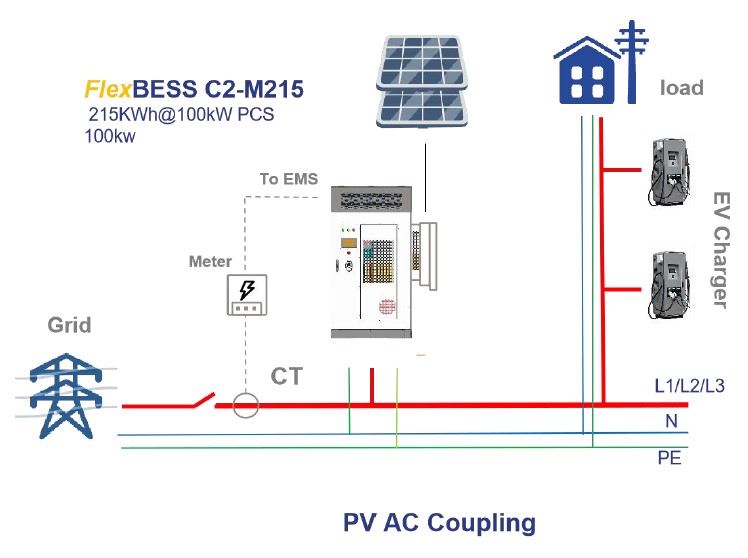

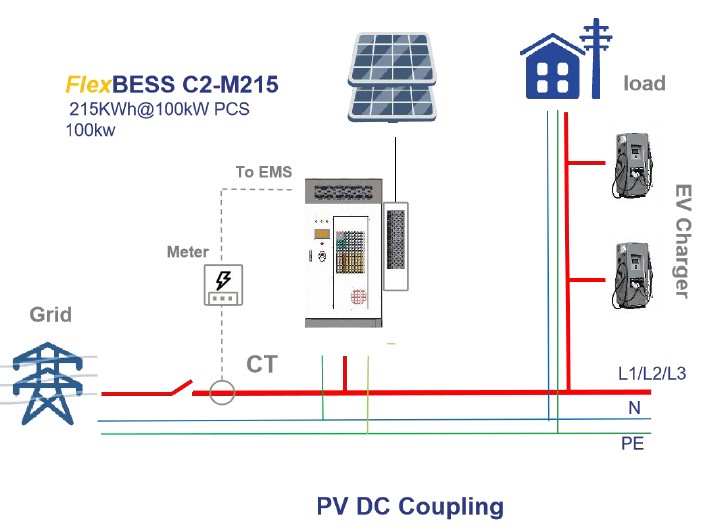

The FlexBESS C2-M215 is compliant with the AC coupling and DC coupling of the PV.

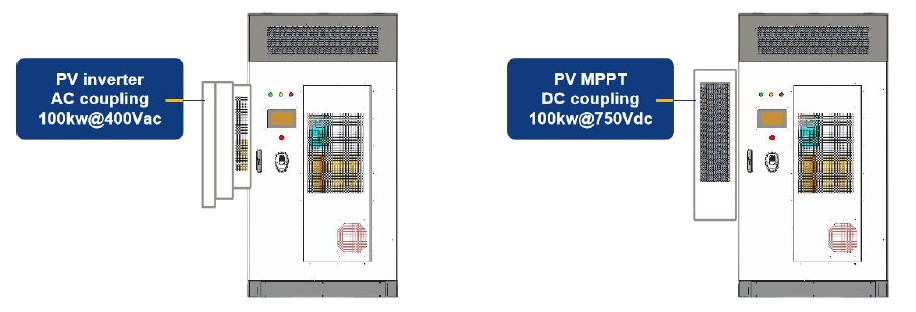

The PV MPPT device PVM100 is composed of a power conversion module and terminal, SPD. DC coupling is only used for the main bay work alone. The AC Coupling can apply for the battery bay paralleling.
■ FlexBESS C2-S215
The FlexBESS C2-S215 is the slave bay of the FlexBESS C2 series, it can not work alone and need to parallel with the main bay. It has the typical configuration: 100kw power PCS and 215kwh battery, but with a local EMS, which is managed by the Main EMS.
■ FlexBESS C2-Ax
The FlexBESS C2-Ax is the side bay of the FlexBESS C2 series, it can not work alone and needs to parallel with the main bays and slave bays. A typical function of the C2-Ax is that it combines the AC output of the parallel bays, And connects to the grid.
The C2-Ax has an option for the STS function.

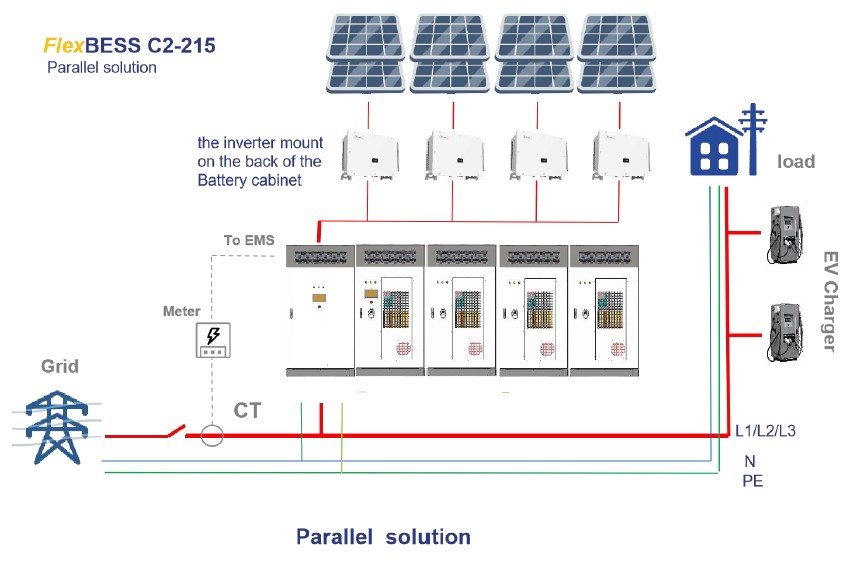

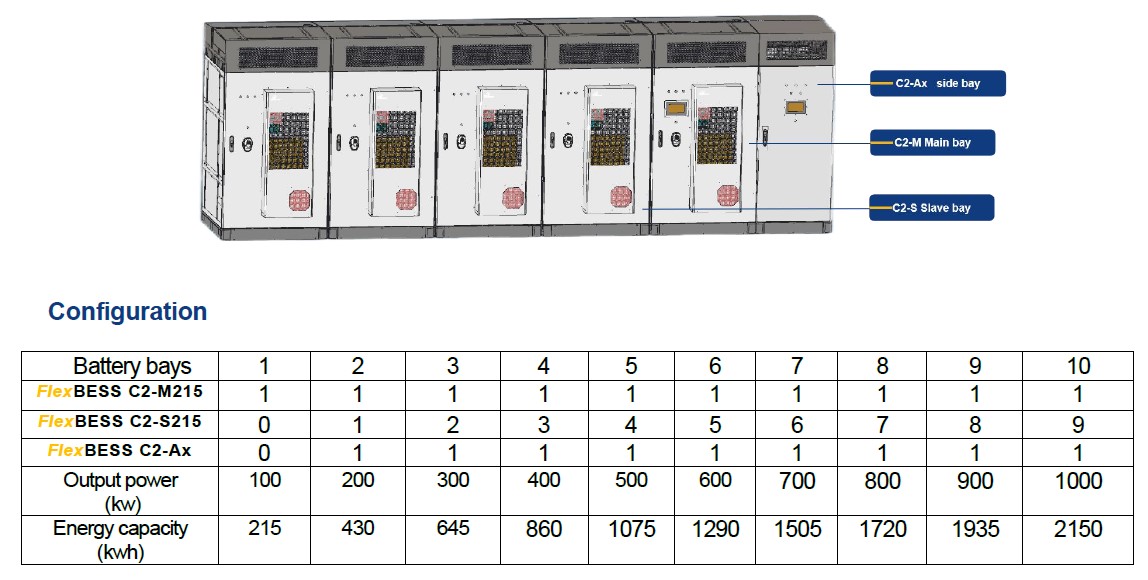

■ FlexBESS C2-215 Parallel
The FlexBESS C2-215 can parallel to more than 10 bays, with the PV inverter mounted on the back, to make a large-scale AC coupling solution. A special design of the C2-Ax bay is used to comply with this solution.
