Product feature
• Low voltage and high voltage solution

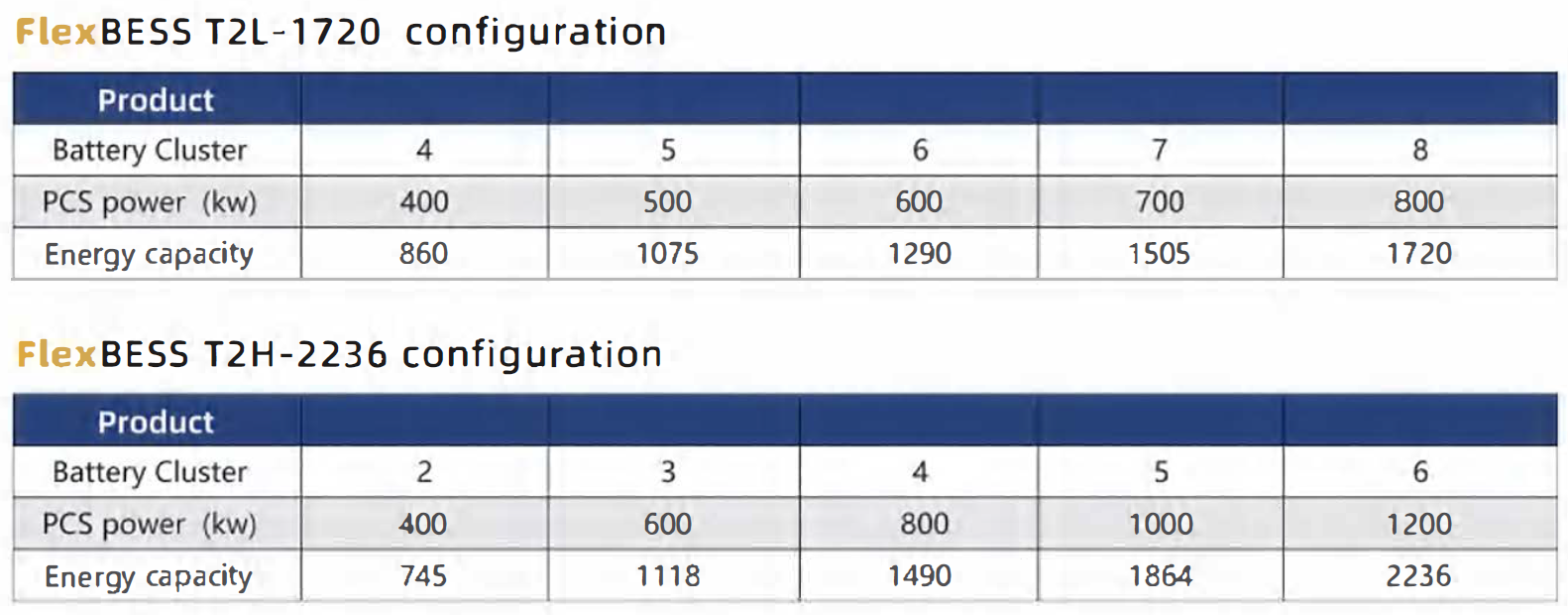

The FlexBESS T2-1720 series has two configurations: high voltage and low voltage.
FlexBESS T2L-1720: Low voltage configuration uses low voltage PCS (400V) and low voltage battery cluster 215 kWh.
FlexBESS T2H-2236: High voltage configuration uses high voltage PCS (690V ac) and high voltage battery cluster 372.7 kWh. PCS connects to grids through the transformer.
• Cluster operation independently
One cluster only connects to one PCS, each cluster operates independently. The differences between battery clusters do not affect each other, effectively improving the usability of the battery at the end of its life cycle.When the PV connects to the system, there are 2 solution options: the PV connects to each cluster through MPPT conversion, or connects to the internal DC busbar which all the battery clusters parallel.
